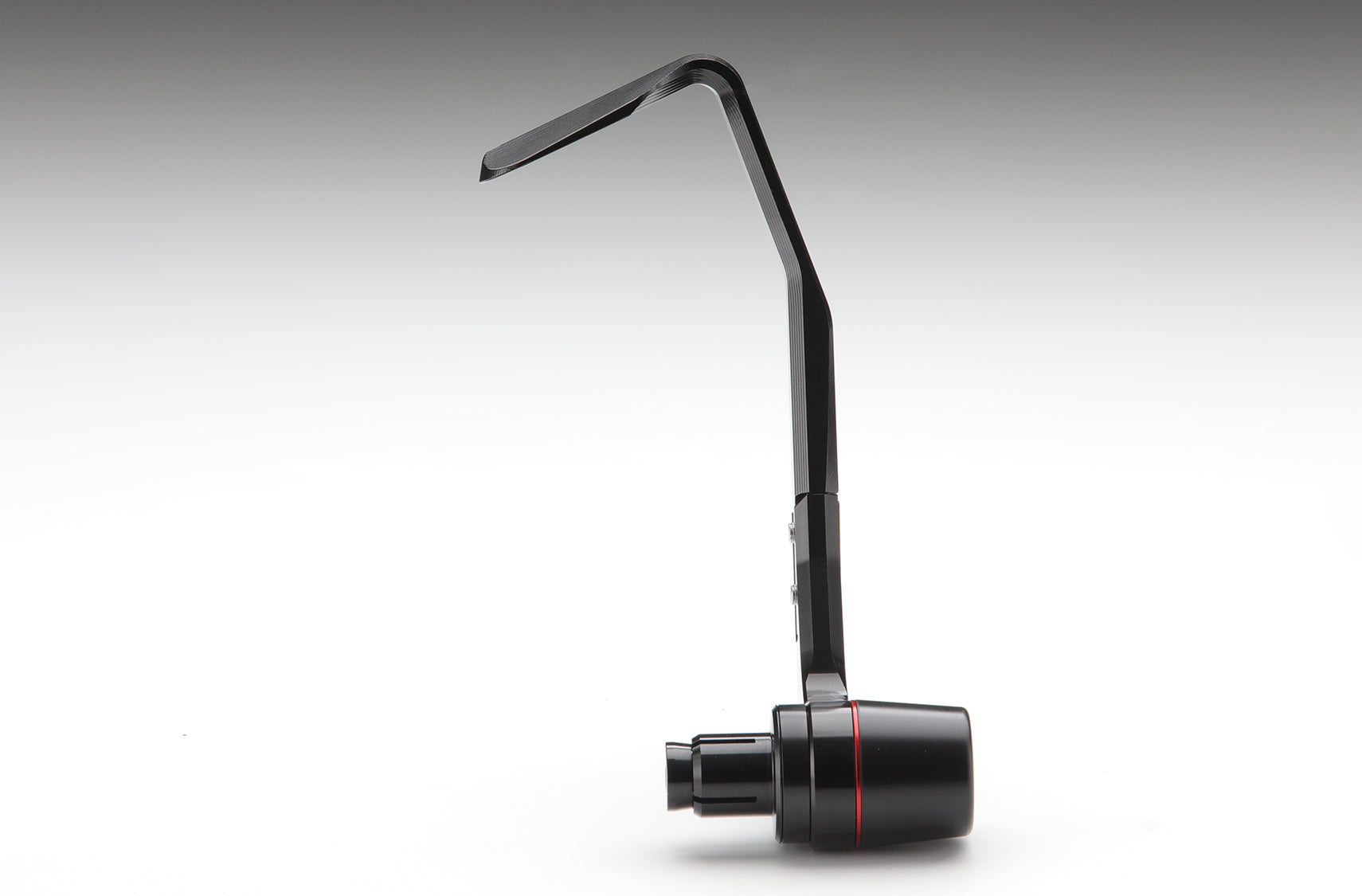

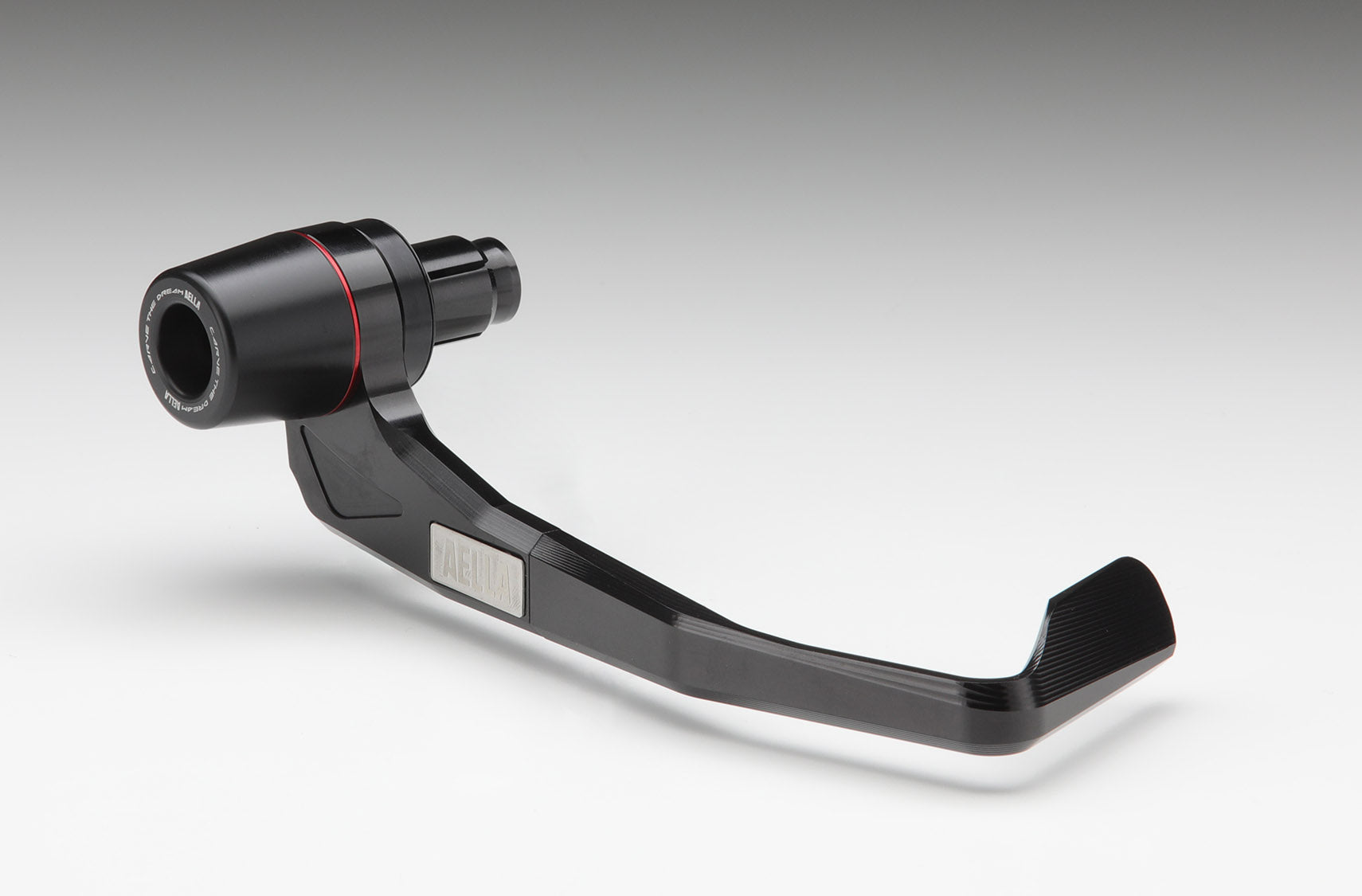

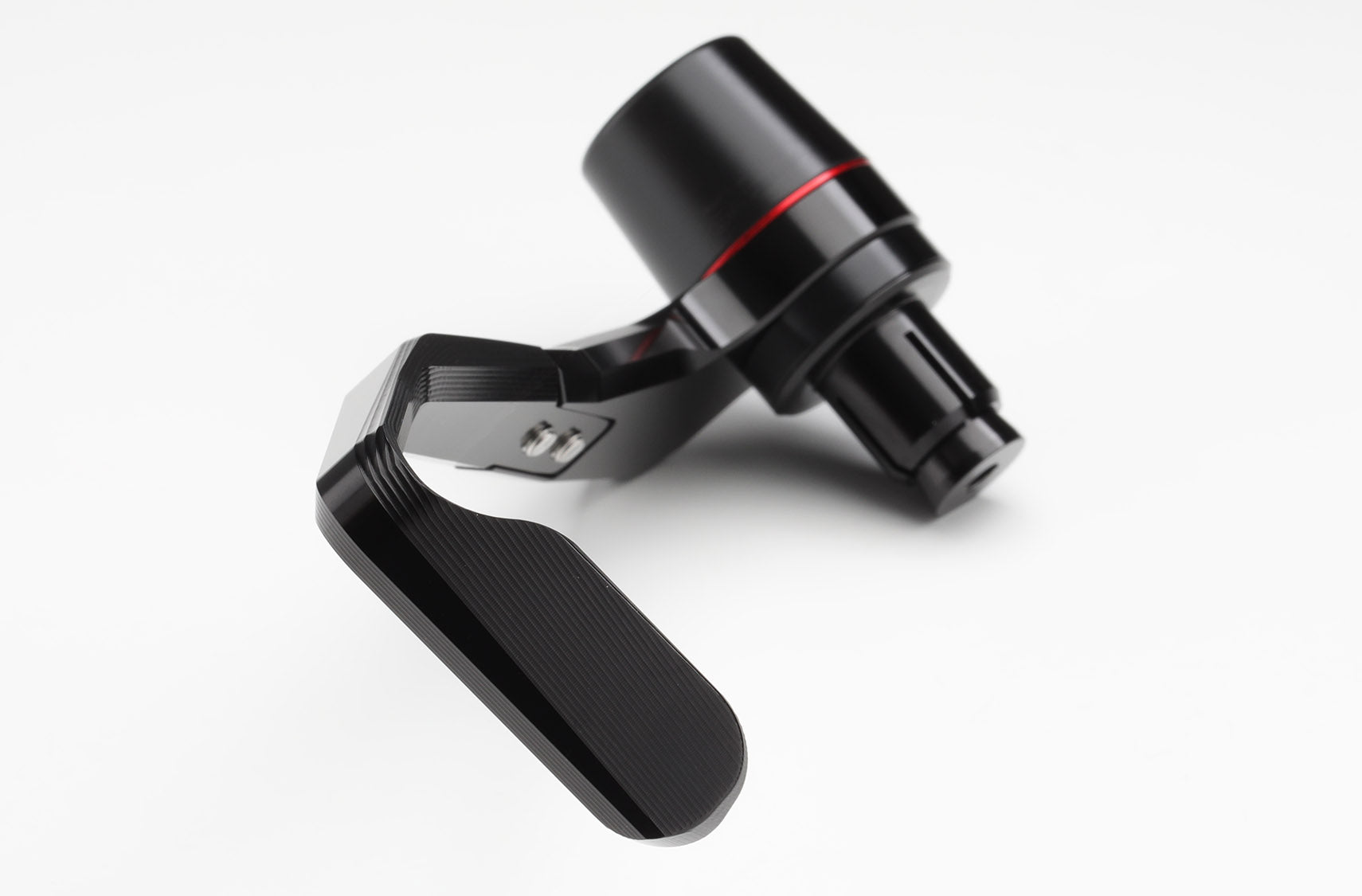

AELLA Brake Lever Guard and Bar End Slider Set – DUCATI
Product Function
The AELLA Brake Lever Guard is designed to prevent unintended brake lever activation caused by contact with another motorcycle, vehicle, or object.
By preventing accidental front brake application and potential front wheel lock-up, it provides an additional level of rider protection for both circuit riding and road use.
The handlebar end incorporates a slider function. In the event of a fall or low-speed slide, the replaceable slider section can be replaced separately, reducing repair costs.
Design & Construction

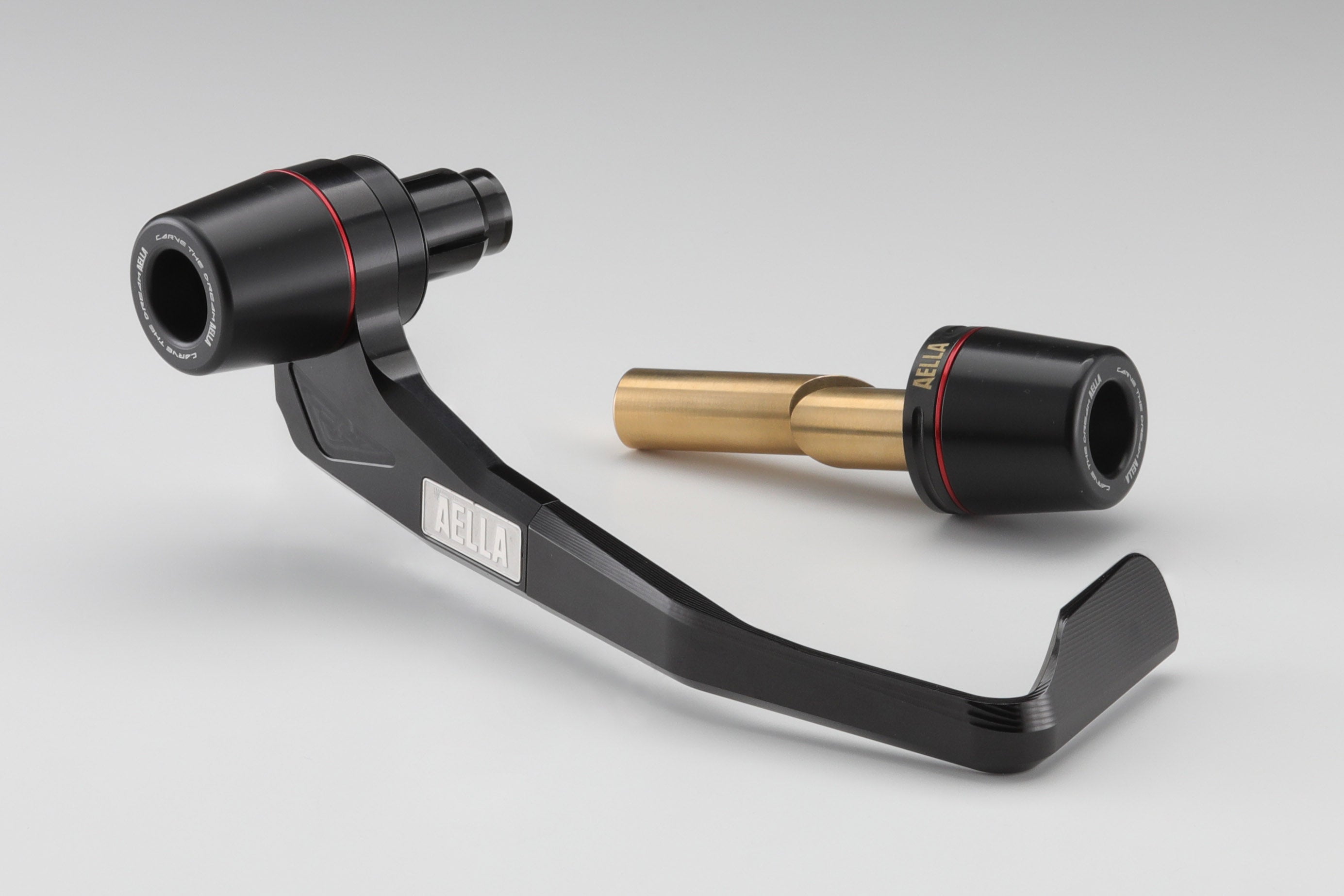

The left-side bar end is manufactured from brass and functions as a handlebar weight, helping to reduce vibration transmitted to the rider.
The bar end slider uses a replaceable resin slider section designed to absorb abrasion during a slide.
AELLA’s precision machining and design provide a clean, high-quality finish that combines functional protection with a refined appearance.
Lever Guard Adjustment
Two offset collars are supplied to ensure clearance between the brake lever and guard:
- 6 mm offset collar
- 12 mm offset collar
This allows correct positioning depending on lever shape and handlebar setup.
Compatible with AELLA vibration-damping bar ends (AT-W0007)
Handlebar Compatibility
Handlebar internal diameter - please check before ordering
- Ø14–15 mm → AE-15005
- Ø16–17 mm → AE-15006
- also available in Ø18–19 mm → AE-15007, please contact us
Replacement Parts

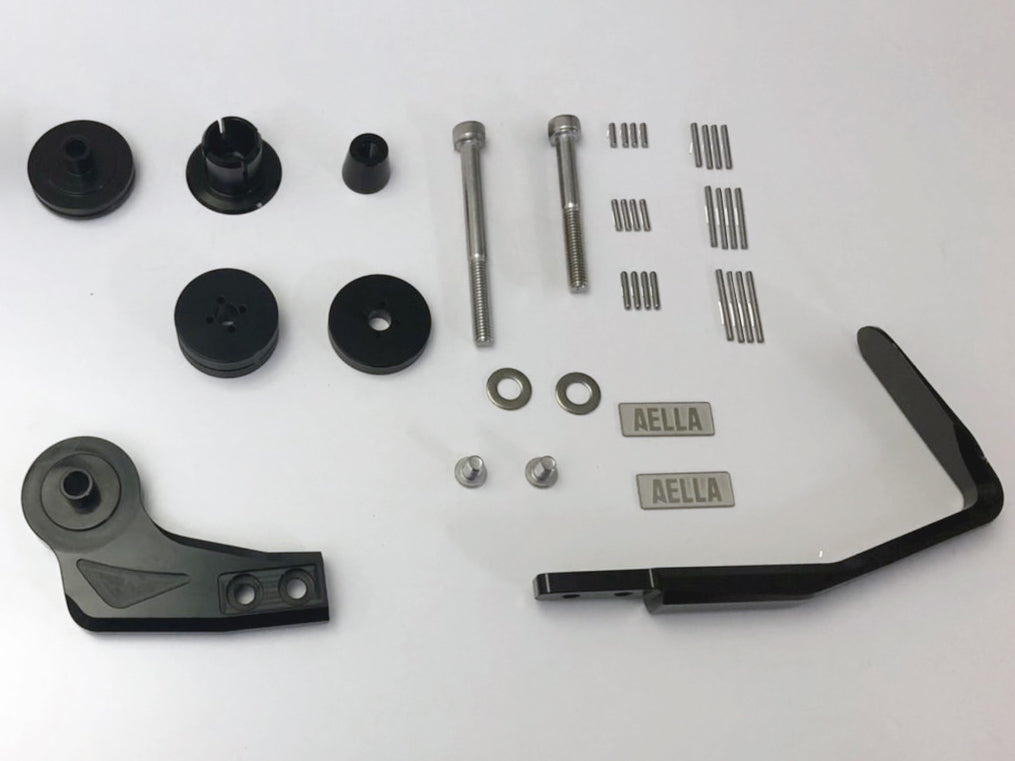

If damaged, individual components can be replaced.
✅ Indicative Fitment Ø14–15 mm → AE-15005
- Ducati
Diavel / Diavel 1260
Monster 1200 / 1100 / 796 / S4RS / S2R
Streetfighter V2 / V4
Supersport 939 / 950
✅ Indicative Fitment Ø16–17 mm → AE-15006
- Ducati
Panigale 1198 / 1098 / 998 / 996 / 916 / 749 / 748
XDiavel
Multistrada 1200 (without hand guards)
Scrambler 800 / Sixty2 - Triumph
Daytona 675
Note: Panigale V2 / 959 / 899 / 1199 / 1299 can come in two inner diameters, please check before ordering. Panigale V2 MY25 has a specific model.
Installation
- ⚠️ Professional installation by a qualified workshop is recommended to ensure correct fitment and torque application.
